SPECIFICATIONS

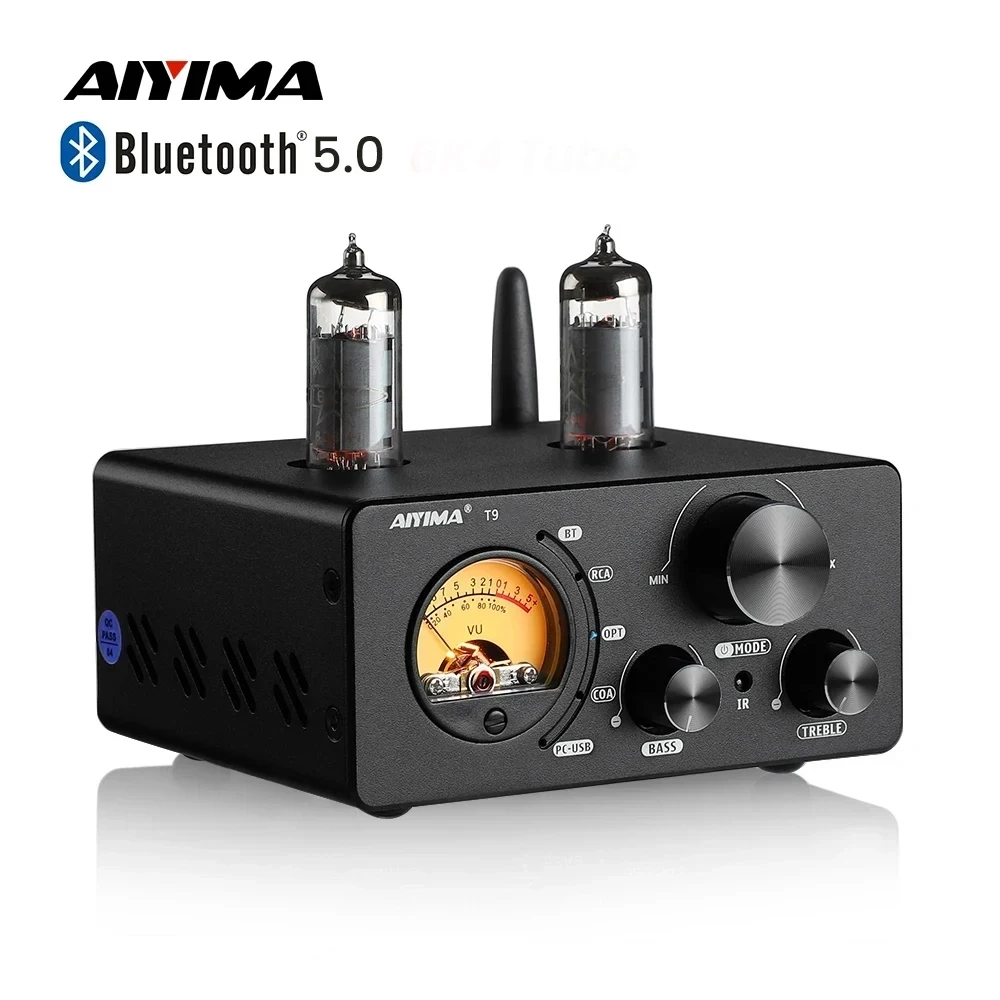

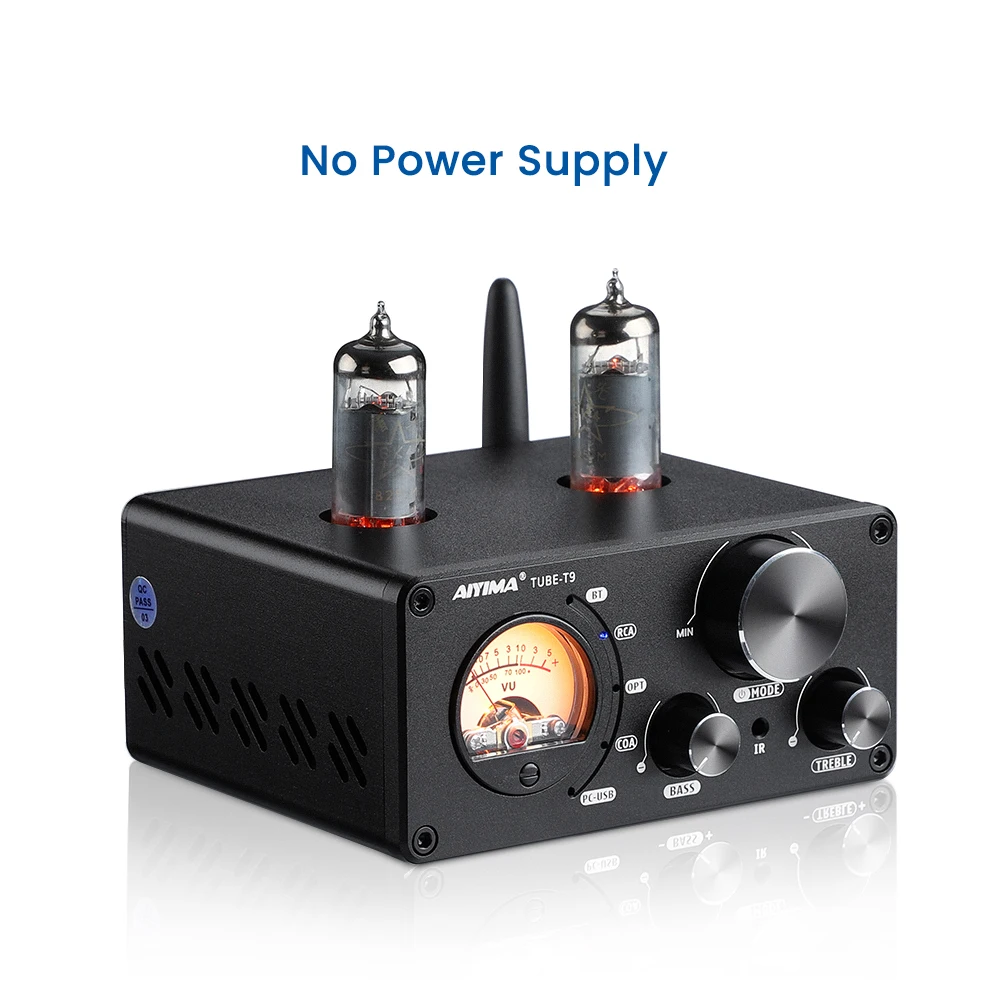

AIYIMA Model: T9

Brand Name: Aiyima

Certification: CE,KC

Channels: 2 (2.0)

Hign-concerned Chemical: None

Maximum Power Per Channel: 100W

Model Number: tube-t9

Origin: Mainland China

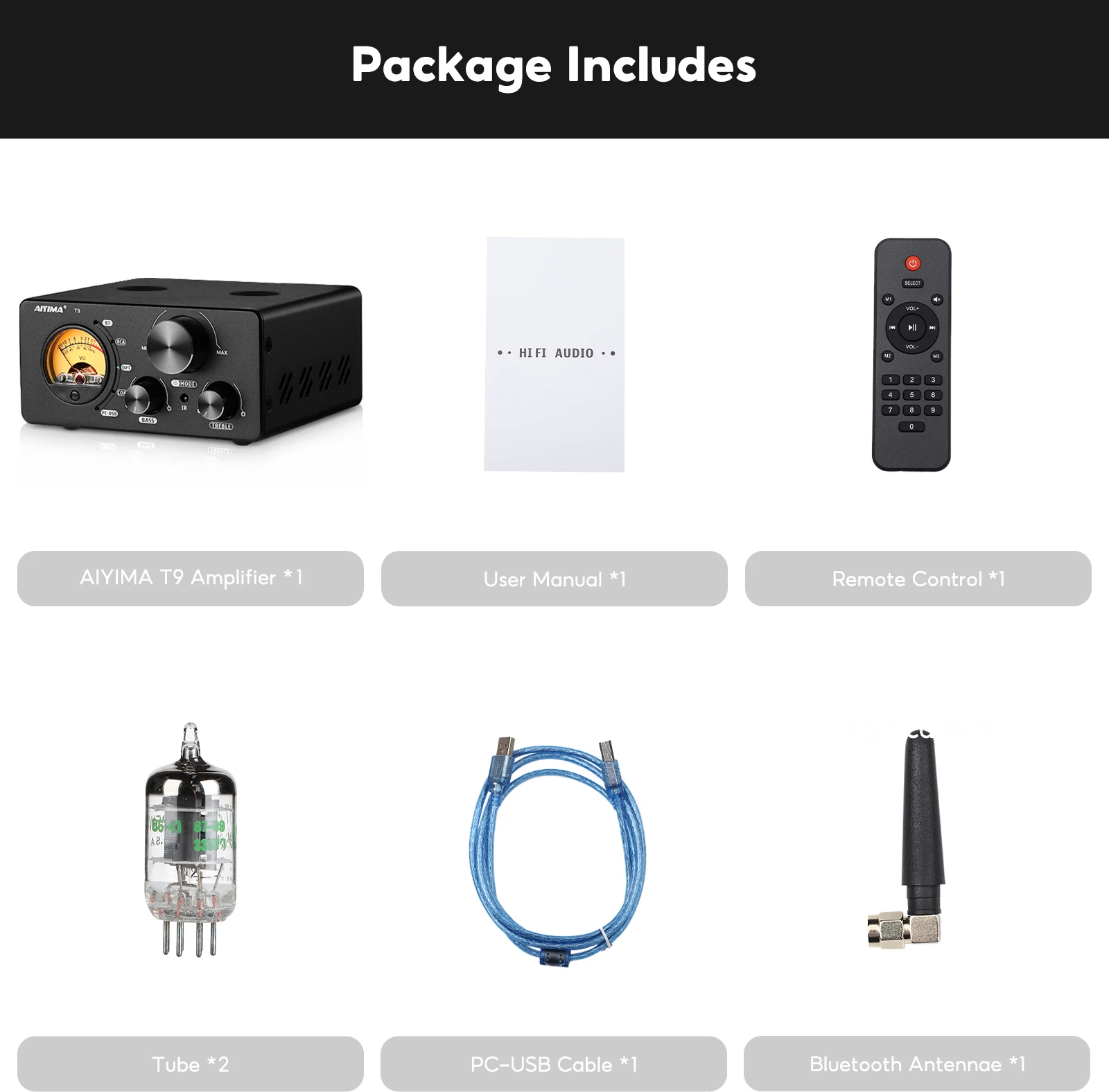

Package: Yes

tube: 6K4

Product Descriptions:

Note:

If there is no input for 10 seconds there will be a prompt tone to remind you to go to sleep.

If you play music again, there will be a prompt tone to indicate that the input is successful.

From 24/04/2024, the 6K4 tubes will be upgraded to American 6186 or 6AG5 or 5725(will be shipped at random) but the price remains the same.

Features:

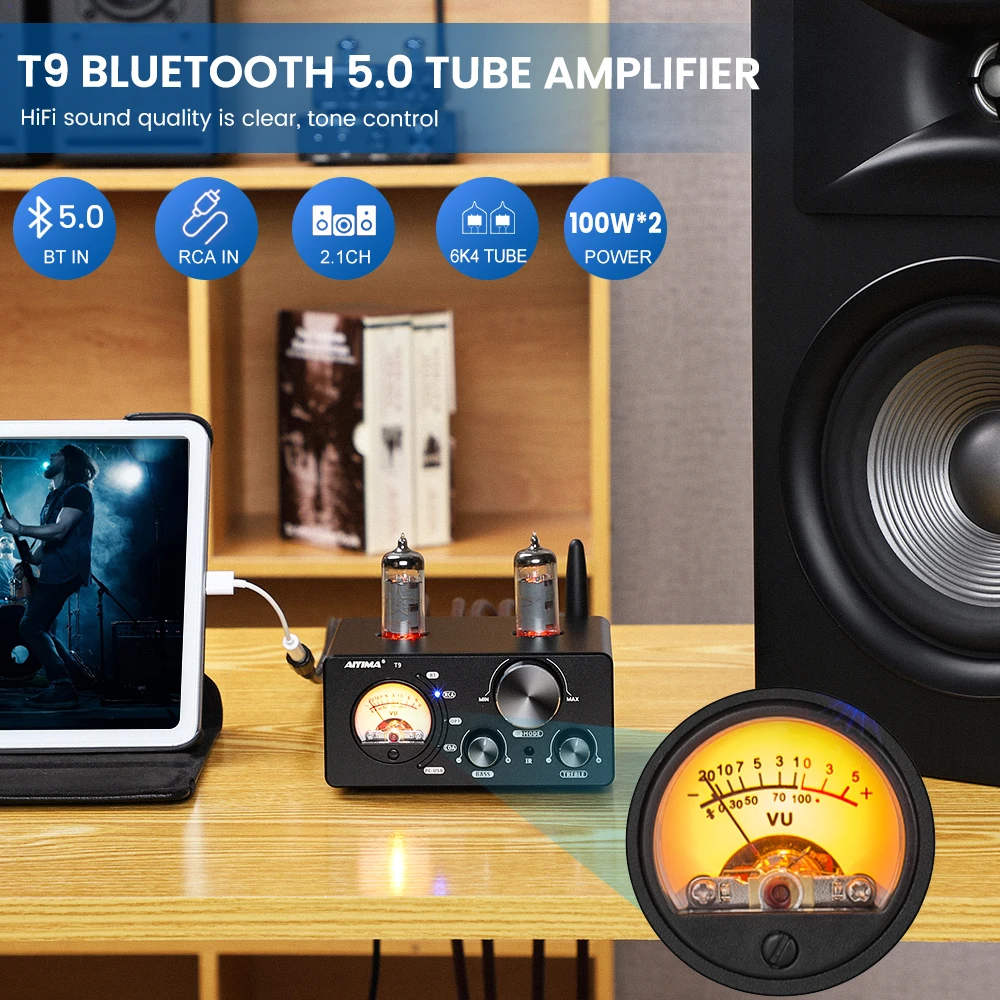

1.Unique and amazing combination: integrated T9 amplifier with VU meter into whole in such a mini size, when enjoy HiFi music, the pointer dancing in the warm light with strong vintage feelings, dynamically decorates the audio system space.

2.HiFi clear sound with tone control: resonable circuit and concise wiring, adopts vacuum tubes to soften the sound and filter out the digital feelings, sounds warm and sweet without noise. Also with treble and bass knobs to adjust one’s own preferable sound styles, presents HiFi music with rousing highs and deep lows.

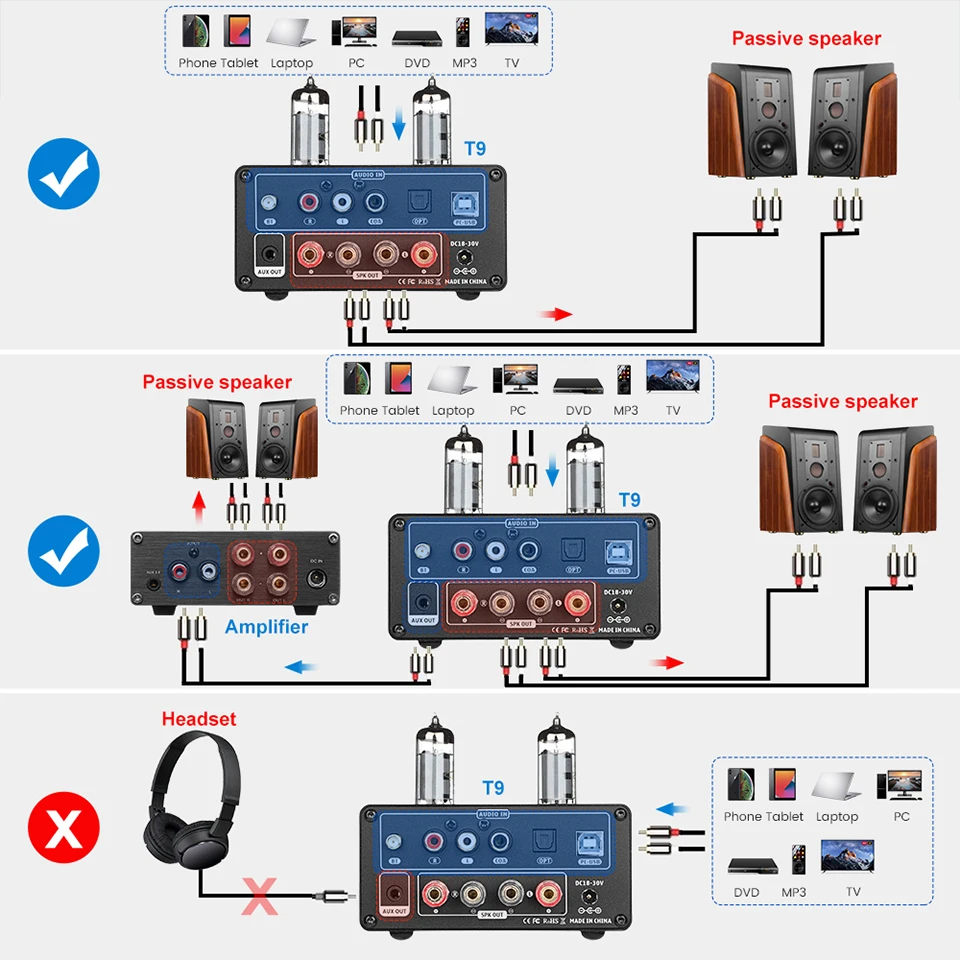

3.Strong output power and low frequency output: use amp IC TPA3250, each channel can output 100W(4Ω), match perfectly and easily to drive all 3-8Ω passive speakers, adds a low frequency output easy to connect active speakers and build 2.1 channel system, the bass effects is greatly enhanced.

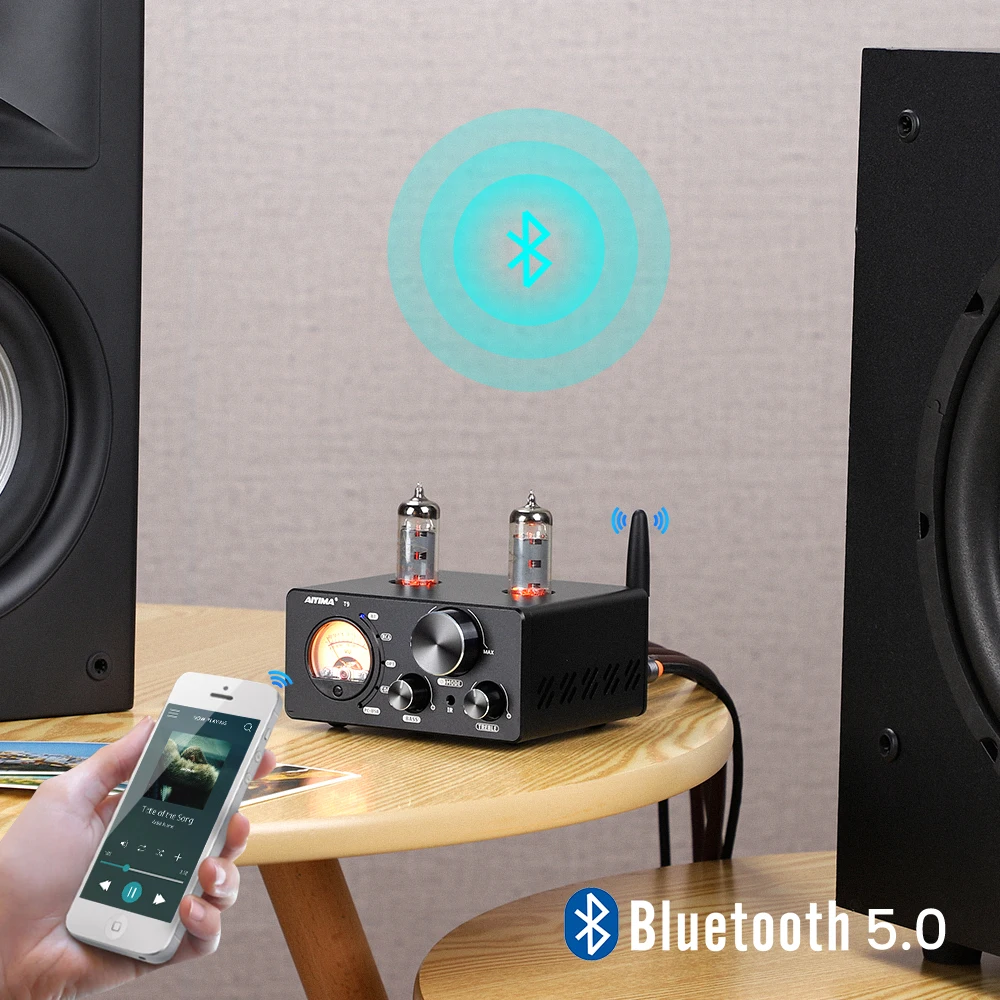

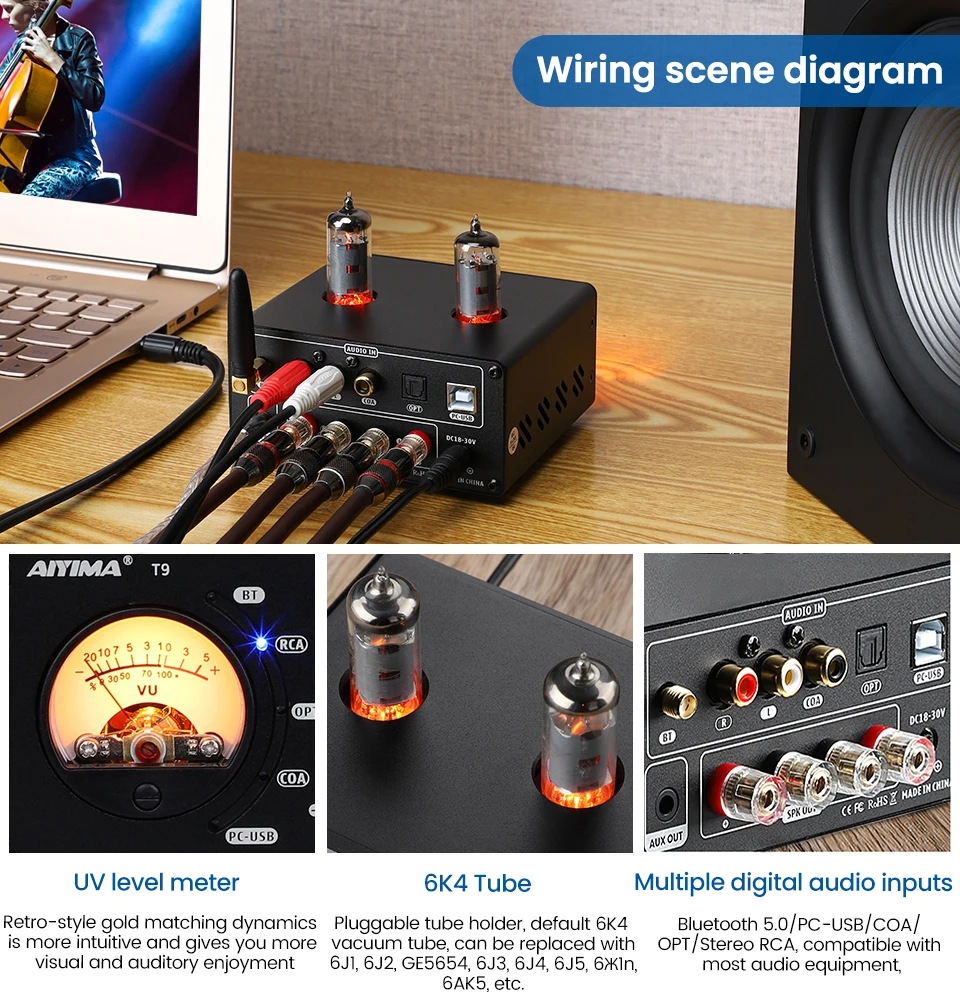

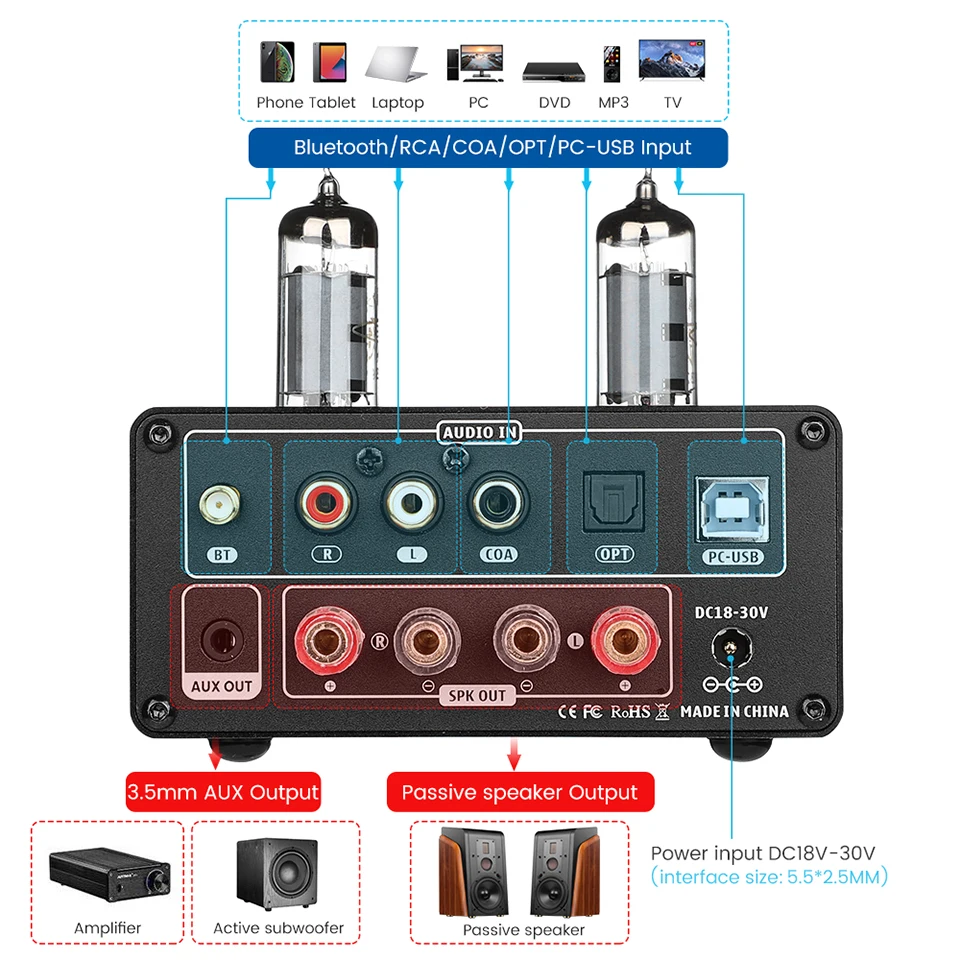

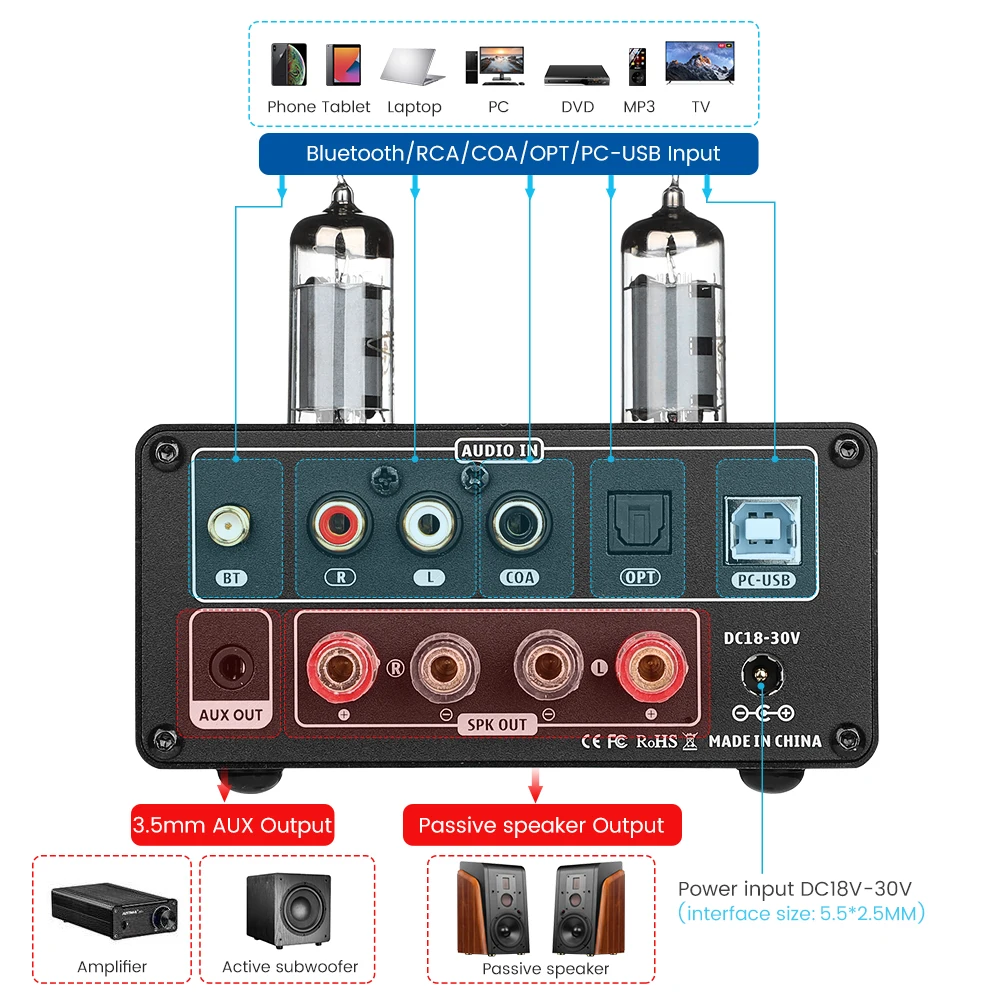

4.With multiple digital audio inputs: Bluetooth 5.0 / USB / Coaxial / Optical / stereo RCA, compatible with most audio device such as phones, computers, tablets, TVs, TV, CD players etc. The perfect combination of DAC and amplifier, very suitale for audiophiles who have various audio devices.

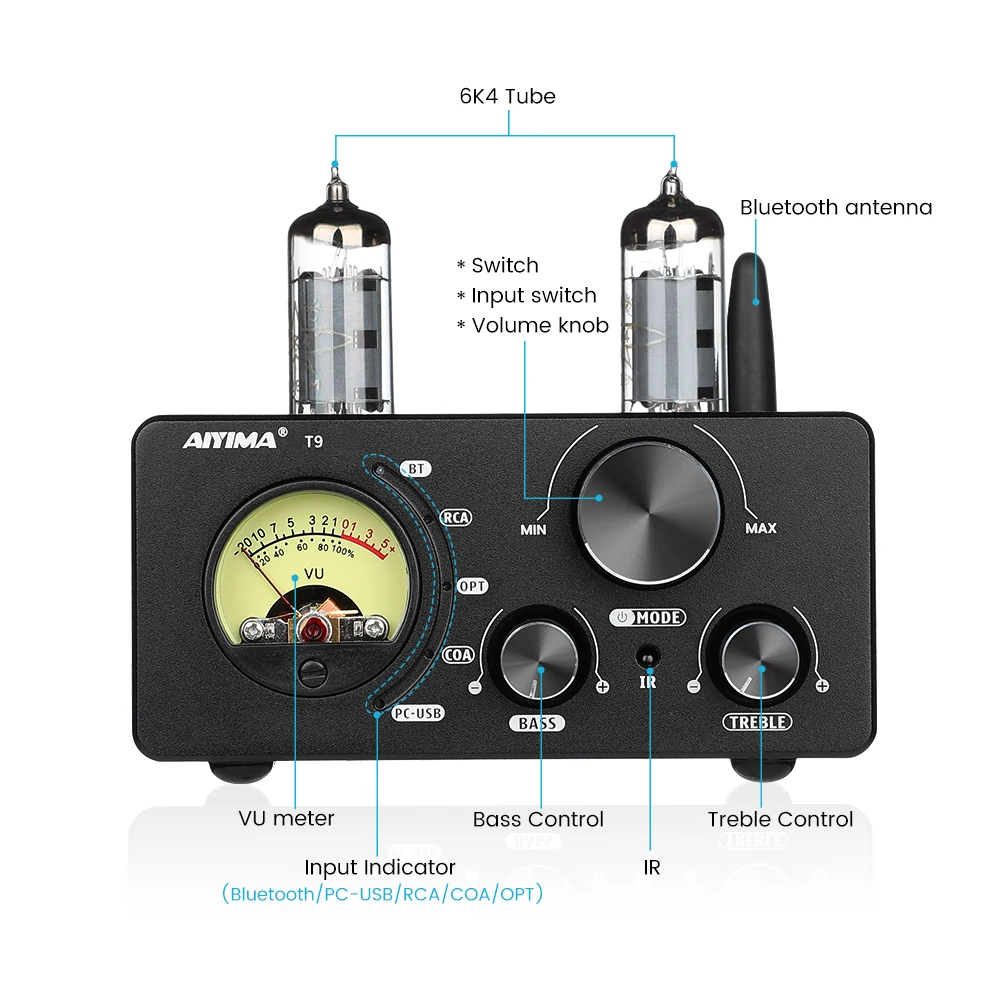

5.Practical funtions to simplify use: with input selection and indicators, clearly to show the working status in real time; aluminum alloy case is specially designed, cool and unique to decorate your desktop space.

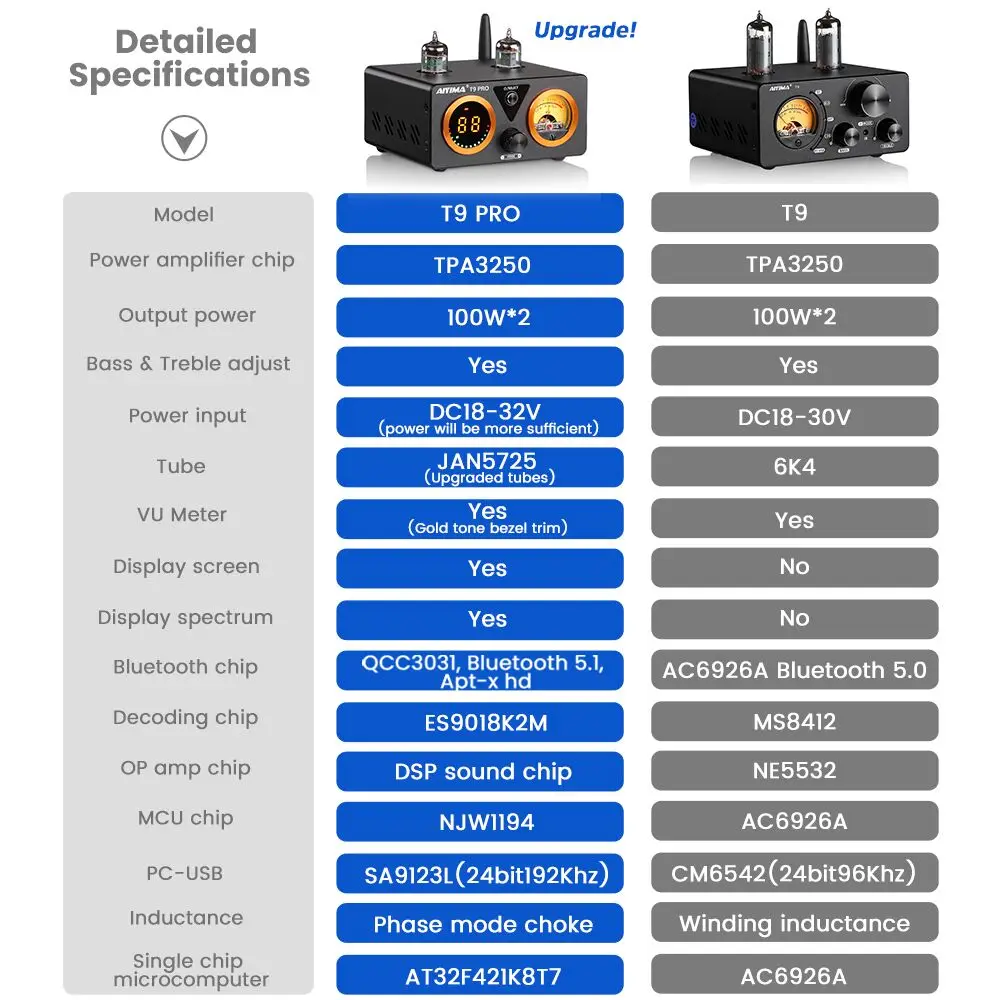

Product paramstes:

Chipt: 6K4+AC6926A+CM6542+MS8412+NE5532

Tube model: 6K4 or 5725

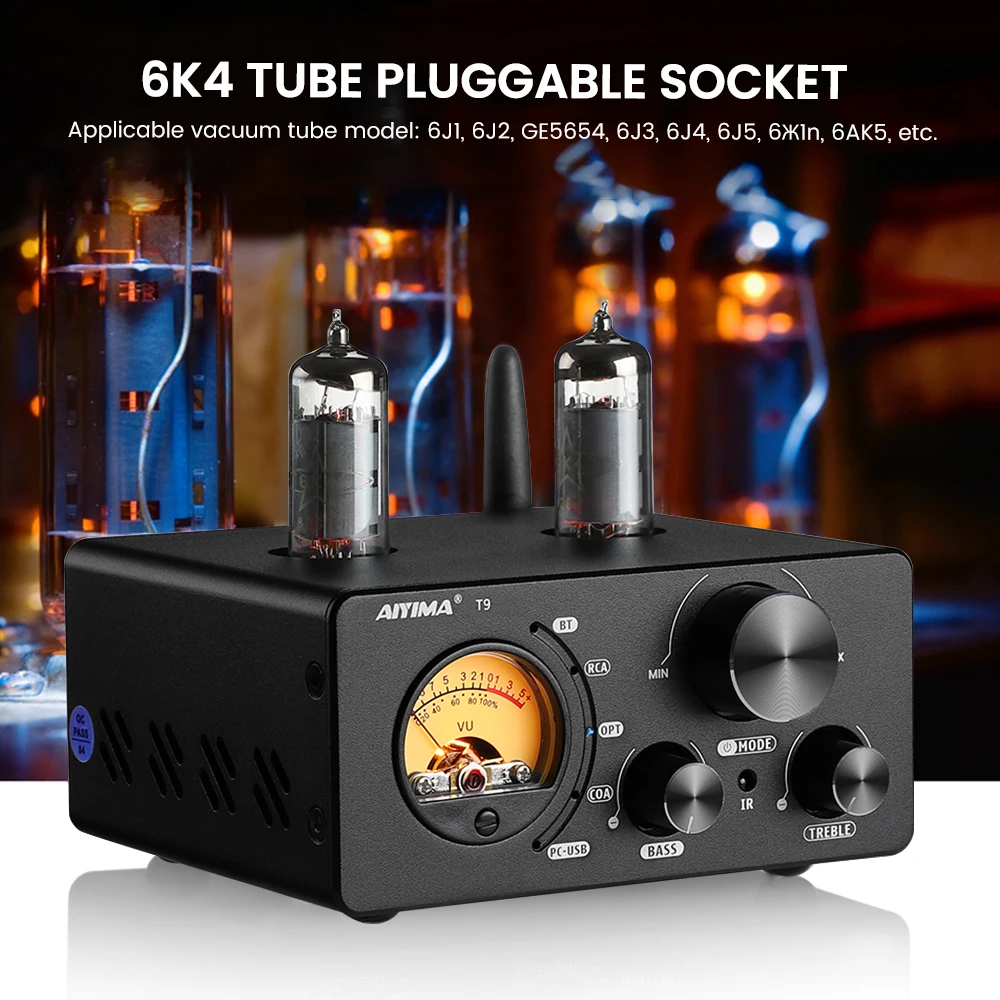

Replaceable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6Ж1п, 6AK5, etc.

Bluetooth chips: AC6926A

Bluetooth 5.0 support: SBC

Support: MP3/WMA/APE/FLAC/WAV

pc-usb sampling rate: 24bit96khz

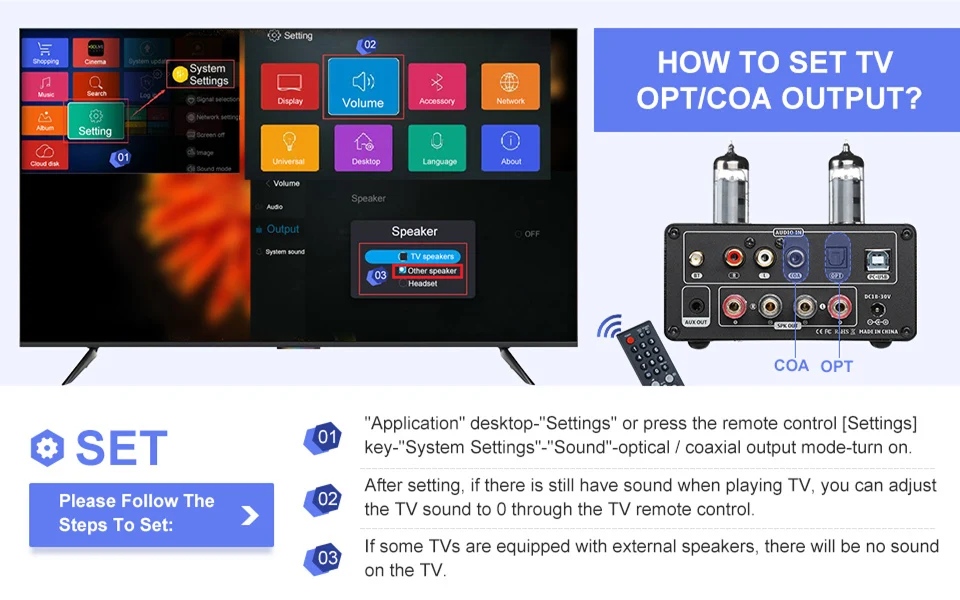

Optical fiber/coaxial sampling rate: 24bit 192khz

Bluetooth sampling rate: 16bit 44.1khz

pc-usb support system: XP/W10/W11/MAC/Linux

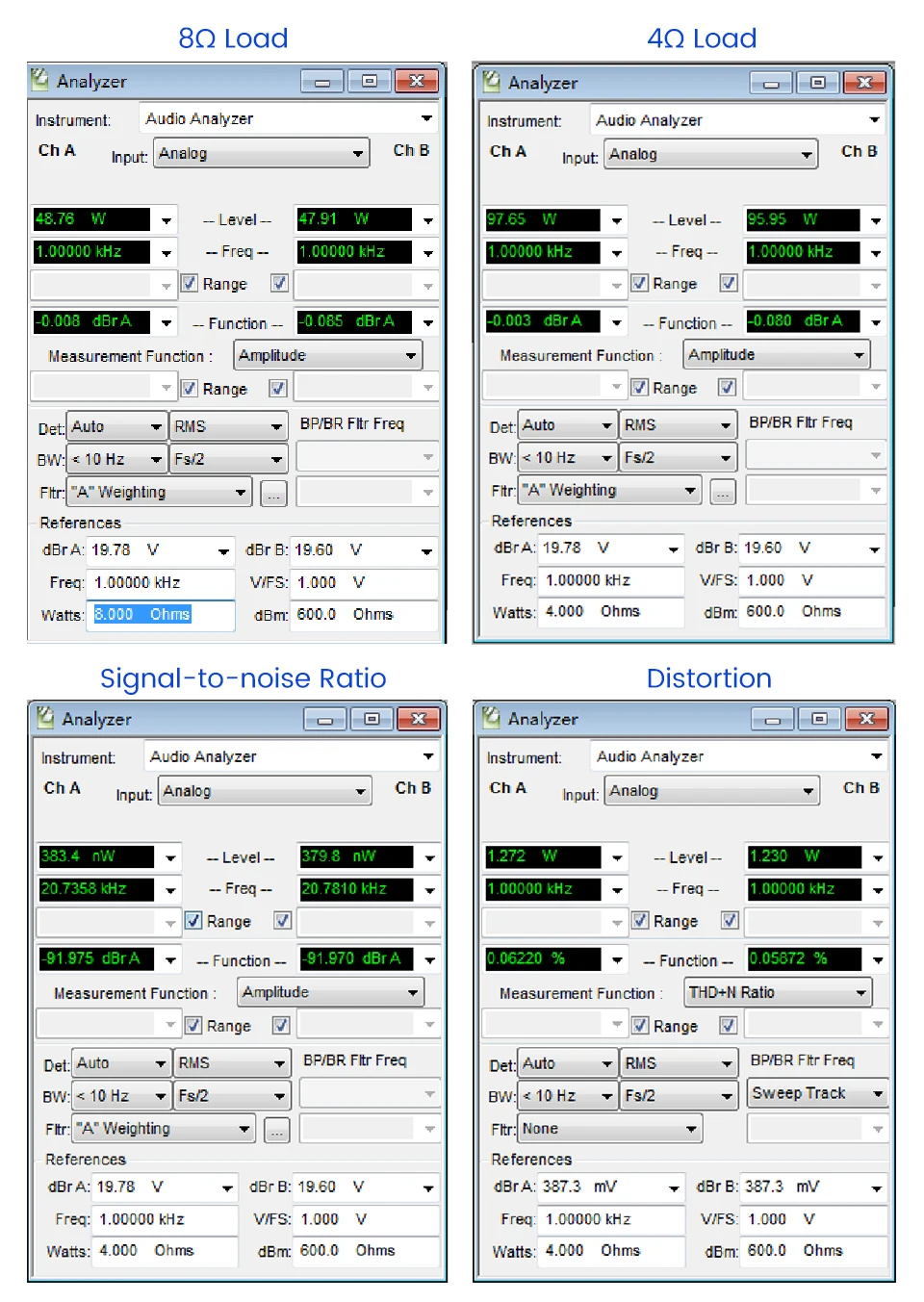

Total harmonic distortion: 0.07%
